OHAI: Open Hardware Assembly Instructions

1 Insert the Belt Mount

Insert instructions for PP-IS0063

PP-IS0063

2 Insert the blower duct

Thermal insert instructions for PP-IS0057

PP-IS0057

3 Insert the Single Bearing Holder

Thermal insert instructions for PP-IS0073

TO COMPLETE PP-IS0065 SEE STEP 8 OF GENERAL SUB ASSEMBLY OHAI

PP-IS0073

4 Insert the Double Bearing Holder

Thermal insert instructions for PP-IS0066

TO COMPLETE PP-IS0066 SEE STEP 9 OF GENERAL SUB ASSEMBLY OHAI

PP-IS0066

5 Insert the extruder mount

Thermal insert instructions for PP-IS0053

PP-IS0053

6 Insert the Handle

Thermal insert instructions for PP-IS0061

PP-IS0061

7 Insert the Spool Arm Bracket

Thermal insert instructions for PP-IS0067

PP-IS0067

8 Insert the spool arm A

Thermal insert instructions for PP-IS0044

PP-IS0044

9 Insert the spool arm B

Thermal insert instructions PP-IS0045

PP-IS0045

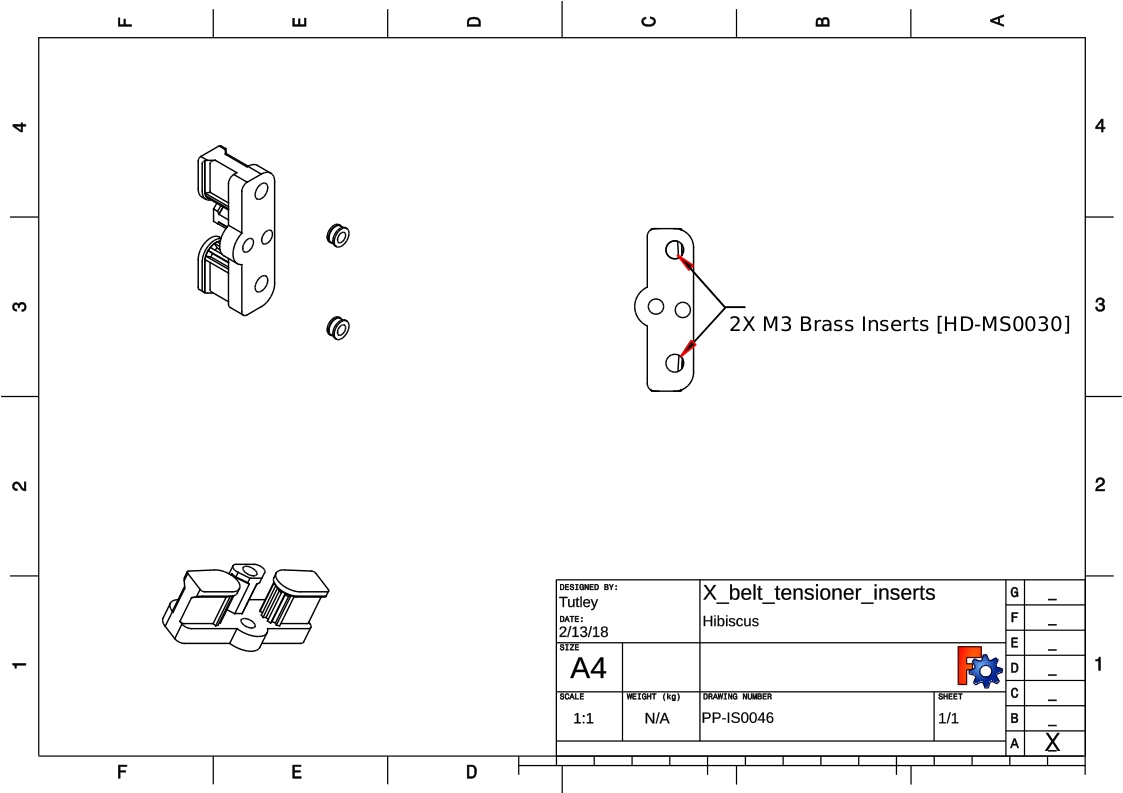

10 Insert the X Belt Tensioner

Thermal insert instructions for PP-IS0046

PP-IS0046

11 Insert the X-Carriage

Thermal insert instructions for PP-IS0060

TO COMPLETE PP-IS0060 SEE STEP 5 OF GENERAL SUB ASSEMBLY OHAI

PP-IS0060

12 Insert the X-End Idler

Thermal insert instructions for AS-PR0087

TO COMPLETE AS-PR0087 SEE STEP 3 OF GENERAL SUB ASSEMBLY OHAI

Note: When inserting the M2 inserts, be careful not to push them in too far as this will cause cracking of the part.

AS-PR0087

13 Insert the X-End Motor

Thermal insert instructions for AS-PR0090

TO COMPLETE AS-PR0090 SEE STEP 4 OF GENERAL SUB ASSEMBLY OHAI

AS-PR0090

14 Insert the Y-Rod Mount

Thermal insert instructions for PP-IS0064

PP-IS0064

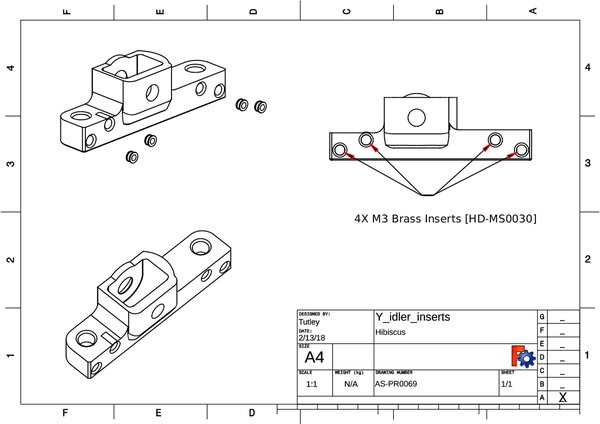

15 Insert the Y Idler

Thermal insert instructions for AS-PR0069

TO COMPLETE AS-PR0069 SEE STEP 2 OF GENERAL SUB ASSEMBLY OHAI

AS-PR0069

16 Insert the z brake mount

Thermal insert instructions for PP-IS0058

PP-IS0058

17 Insert the Z-Lower Left

Thermal insert instructions for PP-IS0049

PP-IS0049

18 Insert the Z-Lower Right

Thermal insert instructions for PP-IS0047

PP-IS0047

19 Insert the Z-Upper Right

Thermal insert instructions for AS-PR0088.

TO COMPLETE THIS ASSEMBLY (BECOMES AS-PR0088) SEE STEP 11 OF GENERAL SUB ASSEMBLY OHAI

AS-PR0088

20 Insert the Z-Upper Left

Thermal insert instructions for AS-PR0091

TO COMPLETE THIS ASSEMBLY (BECOMES AS-PR0091) SEE STEP 10 OF GENERAL SUB ASSEMBLY OHAI

AS-PR0091

21 Insert the Upper Relief Mount

Thermal insert instructions for PP-IS0062

PP-IS0062

22 Insert the LCD Bracket

Thermal insert instructions for PP-IS0043

PP-IS0043

23 Insert the Top Cable Bracket

Thermal insert instructions for PP-IS0054

PP-IS0054

24 Insert the Side LCD Cable Bracket

Thermal insert instructions for PP-IS0055

PP-IS0055

25 Insert the LCD Case

Thermal insert instructions for PP-IS0056

PP-IS0056
