Project Dashboard Heat Beds Packaging for the Taz 5/6 Heat Bed Kit Workflow

1 Gather materials:

For this guide you will need the following materials:

[AS-PR0002] TAZ6, Print Bed Assembly

[SH-BA0008] 16 x 16" 6 Mil Reclosable Bags

[SH-BX0075] TAZ Heat Bed: 14-3/4 x 14-3/4 x 1/2 44 ECT B Brown Die Cut One Piece Folder

[SH-PA0048] TAZ Heat Bed: 18 x 18 Die Cut Pad (insert)

[SH-PG0019] Avery® White Shipping Labels for Laser Printers with TrueBlock Technology

[SH-PG0099] Disposable Desiccant Bag, Silica Gel, for 24 Cubic Inches

2 Place and secure Heat Bed Kit into Die Cut Insert

First, fold the [SH-PA0048] TAZ Heat Bed: 18 x 18 Die Cut Pad (insert) with creased side up, folding all four sides.

Next, place the TAZ 5/6 Heat Bed Kit into the insert by feeding the wire harness through the cutout in the insert as shown.

Then, fold and tape the two flaps as shown.

Lastly, tape the wire harness to the flap as shown.

TAZ Heat Bed: 18 x 18 Die Cut Pad (insert)
Place Heat Bed Kit into Die Cut Insert and secure

3 Place Heat Bed Kit into 16 x 16" 6 Mil Reclosable Bag

Place the Heat Bed Kit into the [SH-BA0008] 16 x 16" 6 Mil Reclosable Bag.

Insert one [SH-PG0099] Disposable Desiccant Bag as shown.

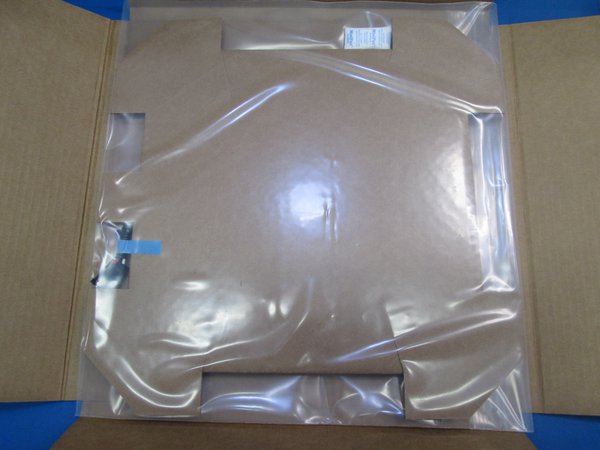

Place Heat Bed Kit into Reclosable bag and insert one desiccant bag

4 Insert Heat Bed Kit into Die Cut Folder

First, place Heat Bed Kit into Die Cut folder and fold small flaps inward as shown.

Next, fold larger flaps to secure the smaller flaps as shown.

Then, tape the larger flaps ensuring the tape is centered on the folder as shown.

Place Heat Bed Kit into Die Cut folder and fold small flaps inward

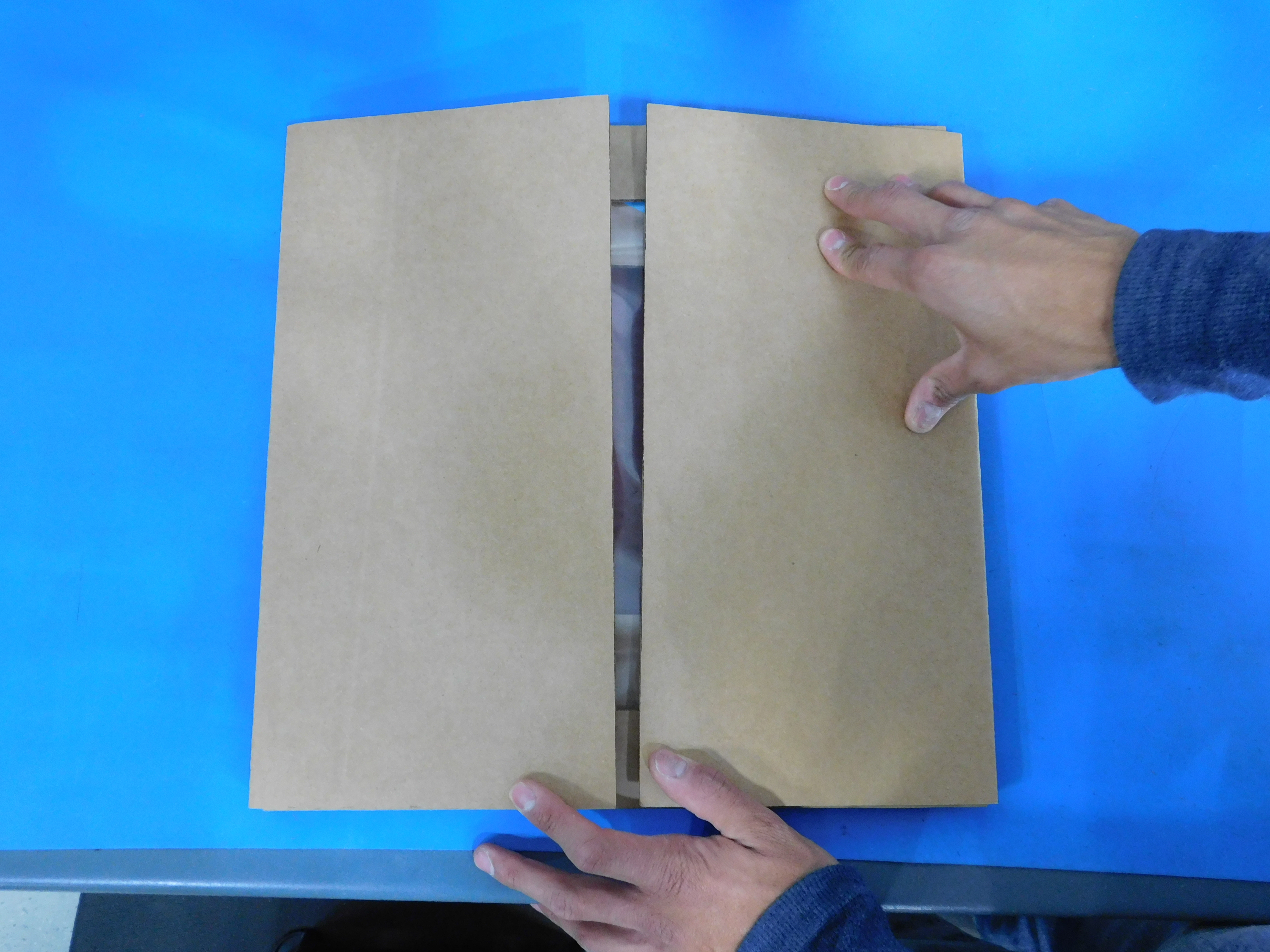

Fold larger flaps to secure the smaller flaps
Tape the larger flaps ensuring tape is centered

5 Attach Taz 5/6 Heat Bed Kit label

Center the [SH-PG0019] TAZ 5/6 Heated Bed Kit label as shown.

Center the TAZ 5/6 Heat Bed Kit label
Done! Take me home
