1 Control Box Cable and Wire harnesses

Cable and wire harnesses required to complete the Mini v1.04 control box assembly

case_fan_harness

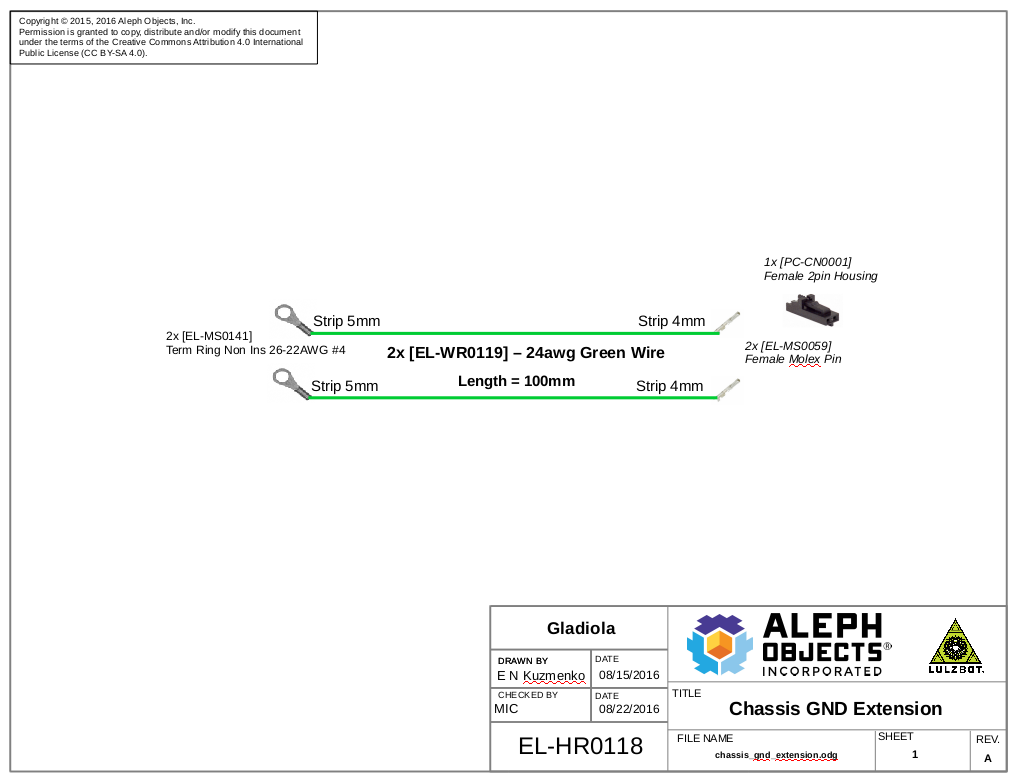

chassis_gnd_extension
earth_gnd_extension
plug_to_gnd_post_extension
plug_to_sw_extension
ps_to_gnd_post_extension
ps_to_rambo
sw_to_ps_extension_black
sw_to_ps_extension_white

2 Large harnesses (Bed, Extruder, and YZ Motor)

Cables required to complete electrical assembly of the Mini v1.04

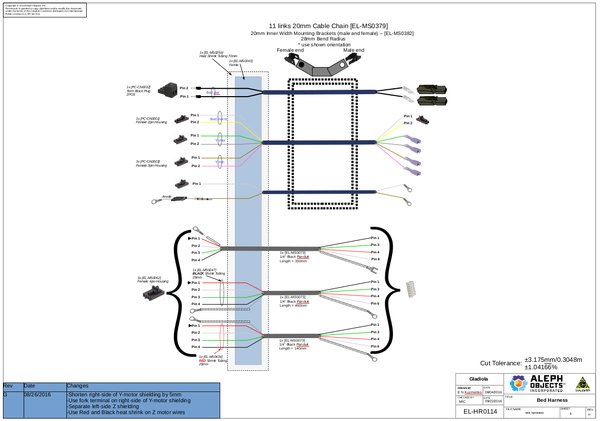

Bed harness
Bed Harness_igus
X_Extruder
yz_motor_harness
